Solid State Microwave Generator-Middle Power

Solid State Microwave Generator is specifically designed for ISM field.It provides higher RF Power,and it can work at both CW(Continuous Wave) and pulse status.The features of this products are: Accurate output power adjustment from 1-3000w,High frequency stability because of PLL phase-locked loop technology,excellent ruggedness because of build-in circulator & passive load for VSWR protection,Reliable performance of the whole system secured of sophisticated protective circuit.

Type	Picture	Frequency (MHZ)	Output Power (W)	Power Supply (V)	Efficiency (%)	Size (mm)	Cooling

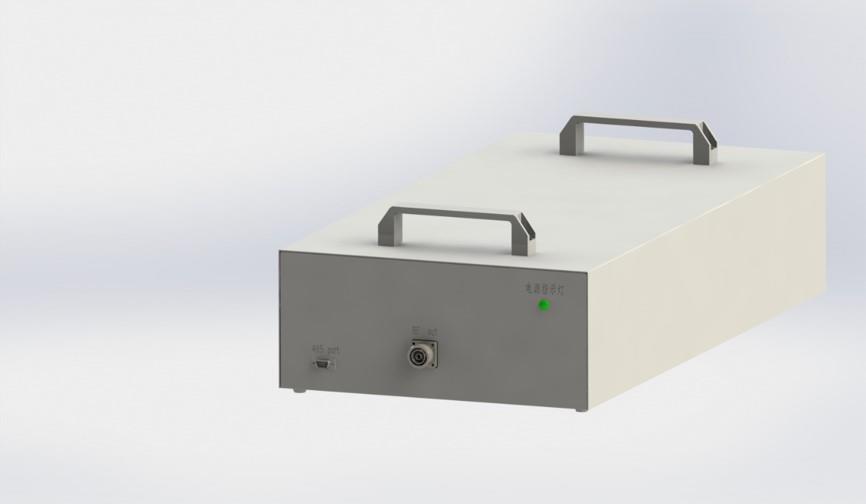

WSPS-915- 500/1000		915	500/1000	220V	40	482.6mm *497.8mm *132.5mm	Water
WSPS-2450- 300		2450	300	220V	40	482.5mm *449.5mm *132.5mm	Air

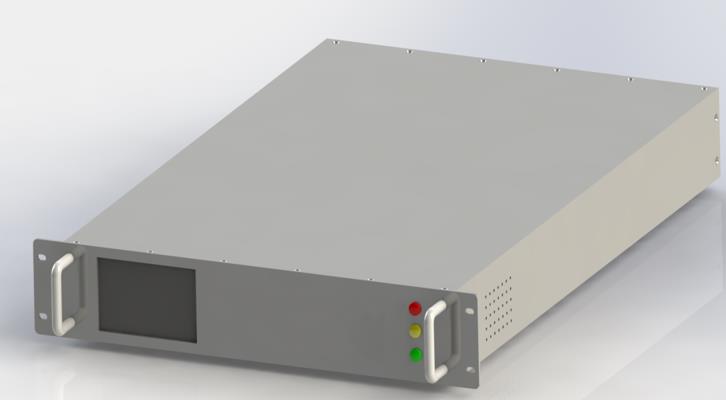

WSPS-2450- 500/1000		2450	500/1000	220V	40	482.6mm *497.8mm *132.5mm	Water
WSPS-2450- 1500		2450	1500	220V	40	318mm *308mm *450mm	Water

Control Method
Digital Communication Control
Local Control(Optional-touch screen)

Operating Mode
Cw
Pulse

Function & Features
Control: Remote monitoring operating status and remote parameter configuration available
Alert Items: Reverse Power, Standing Wave, Current, Temperature with remote check function available
Protection: The system will stop working automatically when the follow problems happen: standing wave/over heating/overloading/over-current/over-voltage

Interface Definition
Power: Single phase 3-wire ,AC 110-264V/50-60HZ
RF emission:BJ26
Control Interface(Operation):DB9M,RJ45
Water Inlet & Outlet : 1/4 fast port

Working Condition
Ambient Temperature: 0℃-45℃
Relative humidity:≤95%
Atmospheric pressure:80kPa-101kPa

External Dimension
General Dimension: 480*132*450mm, General Weight:26.5kg
